Researchers have developed an AI-powered pen that can help detect early signs of Parkinson’s disease by analyzing handwriting patterns. The pen features a soft magnetoelastic silicone tip embedded with magnetic particles and a ferrofluid ink reservoir, allowing it to convert handwriting motions—both on paper and in the air into high-fidelity electrical signals.
In a pilot study, the pen successfully distinguished handwriting samples from Parkinson’s patients and healthy individuals with over 95% accuracy. Experts believe this technology could provide a low-cost, accessible diagnostic tool, especially in regions where neurologists and expensive diagnostic methods are scarce.
How does the AI-powered pen work technically?

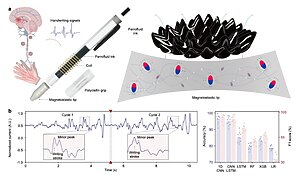

The AI-powered pen for Parkinson’s detection works by converting handwriting motions into high-fidelity electrical signals using a combination of magnetoelastic materials and ferrofluid ink.
Here’s how it functions:
- Magnetoelastic Tip: The pen’s soft silicone tip is embedded with magnetic particles. When a user writes, the applied pressure deforms the tip, causing magnetic flux changes via the magnetoelastic effect.
- Ferrofluid Ink Reservoir: The pen contains ferrofluid ink, which dynamically moves during writing. This motion further modulates the magnetic field, generating electrical signals.
- Conductive Coil & Signal Processing: A conductive coil inside the pen barrel captures these magnetic flux variations, converting them into electrical signals without requiring an external power source.
- AI-Based Handwriting Analysis: The pen’s signals are processed using a neural network, which analyzes handwriting patterns to detect subtle motor symptoms associated with Parkinson’s disease. In a pilot study, the AI model distinguished Parkinson’s patients from healthy individuals with over 95% accuracy.
This technology could provide a low-cost, accessible diagnostic tool, especially in regions where neurologists and expensive diagnostic methods are scarce. While promising, researchers emphasize the need for large-scale human studies to validate its effectiveness before widespread clinical use.
